Crawlspace Encapsulation

Crawl space encapsulation is a type of vapor barrier installed in a raw, unfinished space underneath a home to prevent, mold, mildew and dampness from entering the upstairs space. These barriers are made out of different materials, from basic plastic sheeting to much thicker, multi-layered reinforced polyester which needs to be professionally installed. If a homeowner has a severe problem, such as a very wet crawl space or if there is a mold issue, they often turn to installing a barrier to prevent further decay and protect the upstairs home environment.

TAKE ADVANTAGE OF A DRY CRAWLSPACE

Changing your home from the ground Up!

Start Up Kits Available!

click (+) plus sign for descriptions

+ Crawl Space Encapsulation - 100 Sqft

Crawl Space Encapsulation with Disinfectant Solution (Mildewcide, Bactericide, Fungicide, Deodorant, and Disinfectant Anti-Microbial)

· Setup negative air machine at crawl space entrance

· Clean and Disinfect foundation walls, rim joists, floor joists, and underside of sub-floor using airless sprayer with advanced disinfectant solution (Mildewcide, Bactericide, Fungicide, Deodorant, and Disinfectant (Anti-Microbial)

· Remove excess brick mortar or cement protrusions to ensure a tight seal of the barrier to the crawl space wall

· Evaluate and modify crawl space grade to maximize drop toward sump pump ejector pit

· Create trenches in crawl space substrate and add 4" corrugated drain pipe to channel ground water toward sump pump ejector pit (if applicable)

· Seal all crawl space vents and insulate crawl space access door(s) from the inside with foam insulation board to keep crawl space as air tight as possible

· Install 36-mil crawl space liner along crawl space floor overlapping the liner and utilizing liner tape on all seams

· Install 9-mil wall liner 6-8" from bottom plate (to allow for termite protection) down the walls and joining floor liner overlapping the liner and utilizing liner tape on all seams

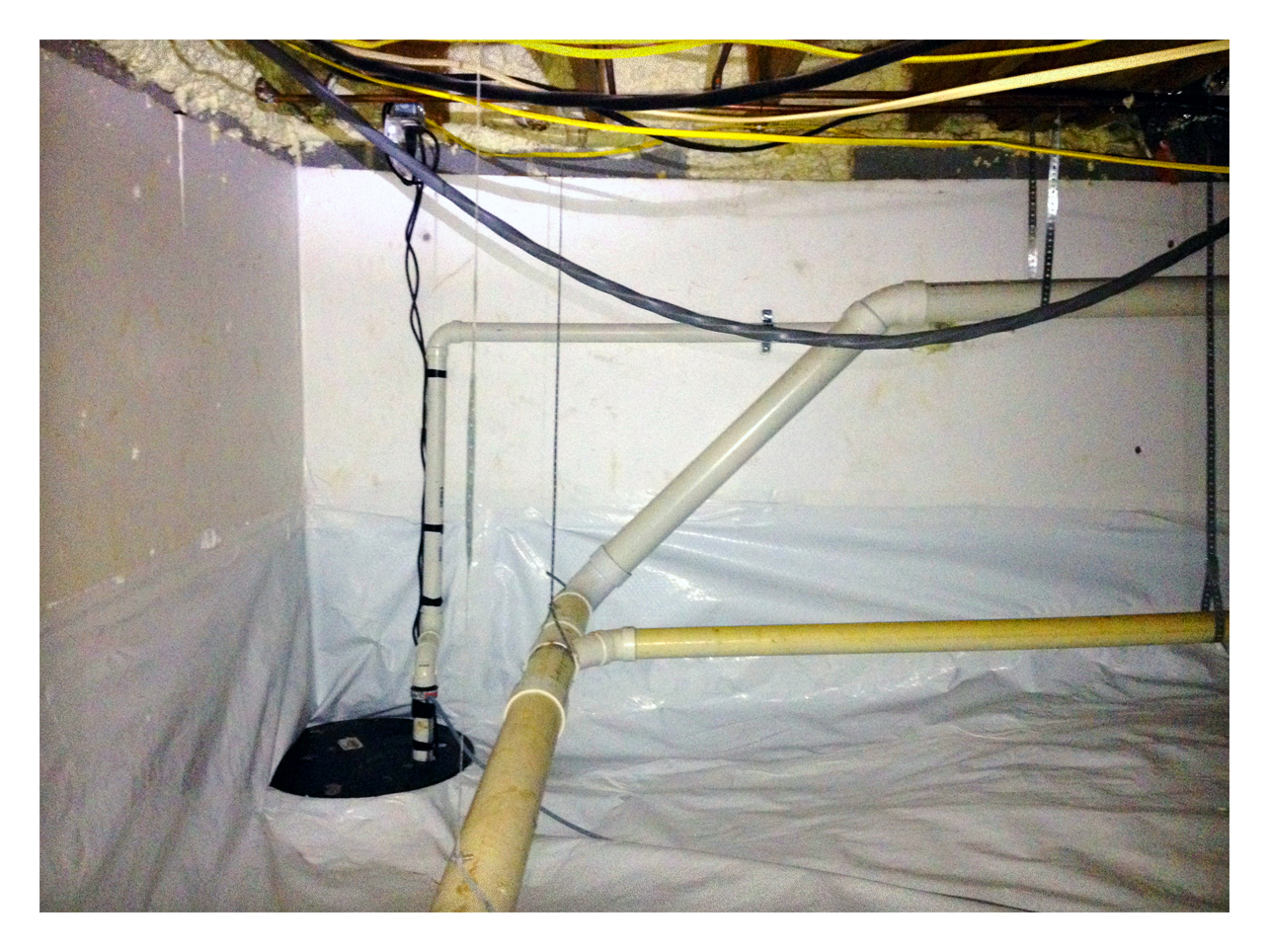

· Install sump pump in crawl space floor to remove water (all plumbing and electrical included)

· 2-Part foam seal of all bottom plate/floor penetrations (plumbing, electrical, cable, telephone, alarm, etc.) to seal crawl space

· Build new crawl space door and insulate inside of door(s)

· Disinfect final encapsulation with fogging machine using advanced disinfectant solution (Mildewcide, Bactericide, Fungicide, Deodorant, and Disinfectant (Anti-Microbial) (if applicable)

+ Crawl Space Access Door - Standard Size (included)

Features:

100% solid PVC crawlspace access door Innovative slot and lock system (no hinges) Added a handle, separate door frame, and a lockable barrel bolt latch Welded corners are welded, not nailed for a clean look
Flush mount
Doors are designed to fit rough 16 in x 32 in opening (door measures 22 in x 38 in) Additional sizes available (priced differently)

+ Crawl Space Sump Pump - (included)

Features

Heavy-duty submersible sump pump in 1/3 or 1/2 hp 16.5 in x 15 in perforated polyethylene sump pit with cover 24 in x 1-1/4 in flexible hose kit, polyethylene System is unassembled Check valve

Kit Contains:

16.5 ft x 15 ft poly sump pit (perforated) and poly cover Automatic sump pump, 115 V, with 10 ft power cord 24 foot flexible hose kit, polyethylene 1-1/4 in Check valve threads directly into pump discharge

+ Healthy Climate Dehumidifier - 70 Pints Per Day (included)

Healthy Climate

HCWHD3-070 Whole Home Dehumidifiers

Moisture control for comfortable living

Designed to easily integrate with the HVAC system, a Healthy Climate dehumidifier removes excess moisture from the air. Depending on the chosen model, homeowners can control humidity in their entire home or a single area

Environmental Responsibility

Uses environmentally friendly R-410A refrigerant New 70 pint model is ENERGY STAR rated Reliable Performance

Effectively remove excess moisture from the entire home, a single area, such as a basement or a combination of both Easier to use and less intrusive than portable units no need to empty buckets of water Designed to easily integrate with the heating and cooling system Health

Help create healthier air by reducing dust mites and mold that thrive in humid environments No ozone emissions a known lung irritant
